Description

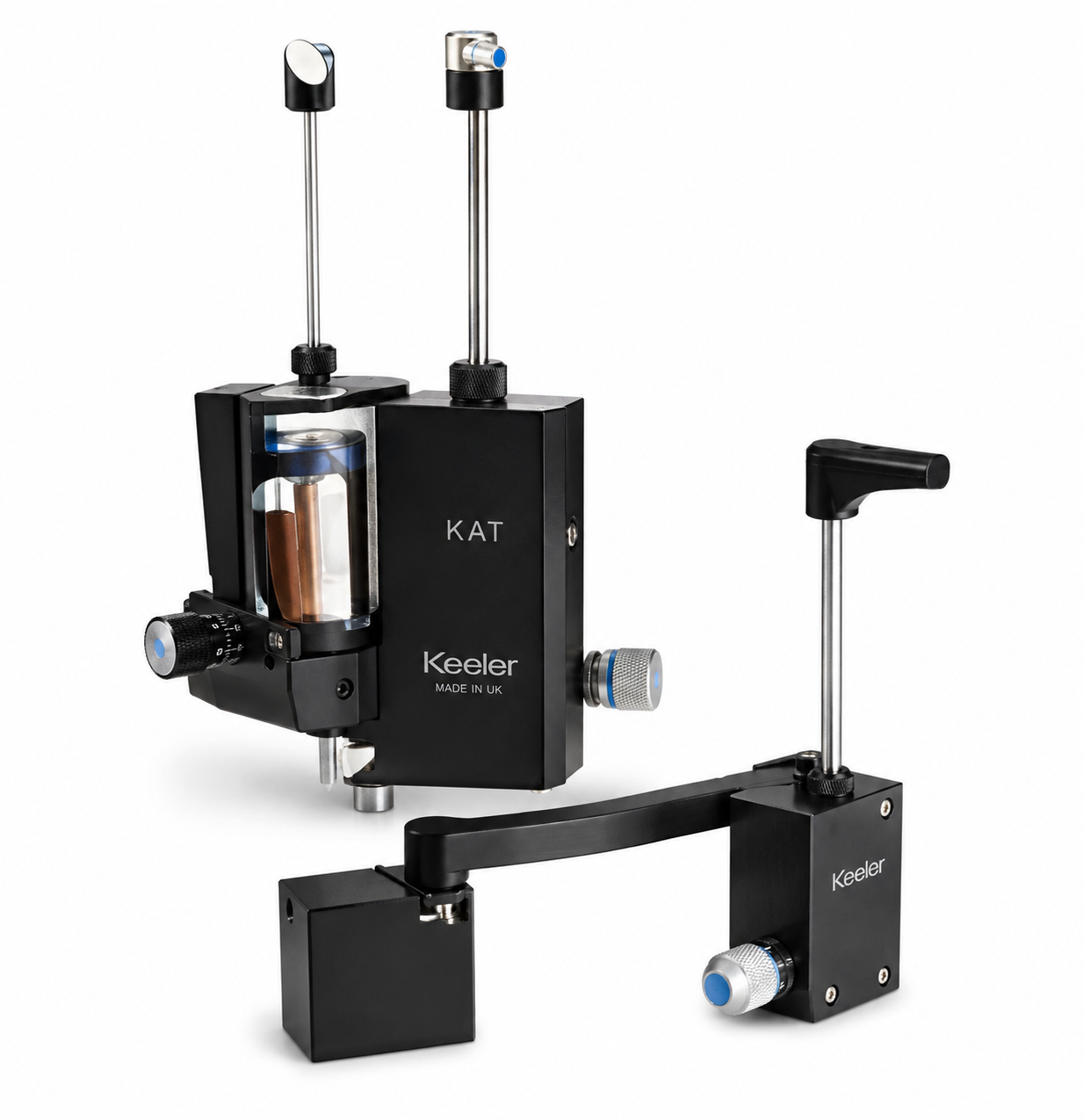

Keeler KAT® Applanation Tonometer
The Keeler KAT® (Keeler Applanation Tonometer) is a premium Goldmann-style tonometer developed for accurate, reliable, and repeatable intraocular pressure (IOP) measurement. Manufactured using precision-engineered components and stringent quality control processes, the KAT® provides clinicians with dependable performance and consistent results in everyday ophthalmic practice.
Built on the internationally recognized Goldmann Applanation Principle, the KAT® remains one of the most trusted methods for glaucoma screening and IOP assessment worldwide.
Key Features
- Goldmann Applanation Principle
- Highly Accurate IOP Measurement
- Reliable and Repeatable Results
- Precision-Machined Components
- Robust All-Metal Construction
- Long-Term Clinical Durability
- Available in Multiple Mounting Configurations
- High Precision Engineering Design
- Easy Integration with Slit Lamps
- Supplied with Calibration Accessories
Goldmann Applanation Technology
The Keeler KAT® operates using the Goldmann applanation principle, widely regarded as the clinical gold standard for measuring intraocular pressure.
Benefits
- Accurate glaucoma screening
- Direct IOP measurement
- Consistent clinical outcomes
- Trusted by eye care professionals worldwide
- Excellent repeatability
Available Models
KAT® T Type
The T Type tonometer is fitted to a guide plate located on the optical axis of the slit lamp microscope and illumination arm.
Part Number: 2414-P-2030
KAT® R Type
The R Type model mounts on a dedicated post attached to the slit lamp optical body.
Part Number: 2414-P-2040
KAT® BQ Type
Designed specifically for compatibility with Haag-Streit BQ, BP, and BX slit lamps.
Part Number: 2414-P-2020
Precision Engineering
Every KAT® tonometer is manufactured using high-quality metal components engineered to strict tolerances.
Advantages
- Exceptional durability
- Long service life
- Reliable measurements year after year
- Minimal maintenance requirements
- Superior build quality
The robust all-metal construction ensures dependable performance in demanding clinical environments.
Technical Specifications
| Specification | Details |
|---|---|
| Measurement Principle | Goldmann Applanation |
| Measurement Range | 0 – 80 mmHg |
| Measurement Accuracy | ≤ 0.49 mN |
| Operating Temperature | 10°C – 35°C |
| Measurement Force | By Leverage Weight |
| Impact Force Divergence | ≤ 1.5% of Nominal Value |
| T Type Weight | 0.41 kg |
| R Type Weight | 0.69 kg |
| BQ Type Weight | 0.712 kg |
Standard Accessories
The T Type and R Type KAT® models are supplied with:
- Reusable Doubling Prism
- Calibration Check Bar
- T Type Guide Plate or R Type Mounting Post
- User Documentation
Optional Accessories
Protective Aluminium Carrying Case
A high-quality aluminium storage and transport case designed to protect the instrument during travel and storage.
Additional Accessories
- Doubling Prism
- Calibration Arm Assembly
- T Type Guide Plate
- R Type Mounting Post
Applications
- Intraocular Pressure Measurement
- Glaucoma Screening
- Comprehensive Eye Examinations
- Ophthalmology Clinics
- Eye Hospitals
- Optometry Practices
- Diagnostic Eye Care Centers
Why Choose Keeler KAT®?
- Gold Standard Goldmann Applanation Technology
- Exceptional Measurement Accuracy
- Proven Clinical Reliability
- Precision British Engineering
- Robust All-Metal Construction
- Compatible with Multiple Slit Lamp Systems
- Long-Term Durability
- Trusted by Eye Care Professionals Worldwide
The Keeler KAT® Applanation Tonometer combines precision engineering, proven Goldmann technology, and outstanding durability to deliver accurate and repeatable intraocular pressure measurements for modern ophthalmic practices.
